eK100 Tail Kit

from $275.00

1/30/2025 - Newly listed kit: orders will take several weeks to procure and ship.

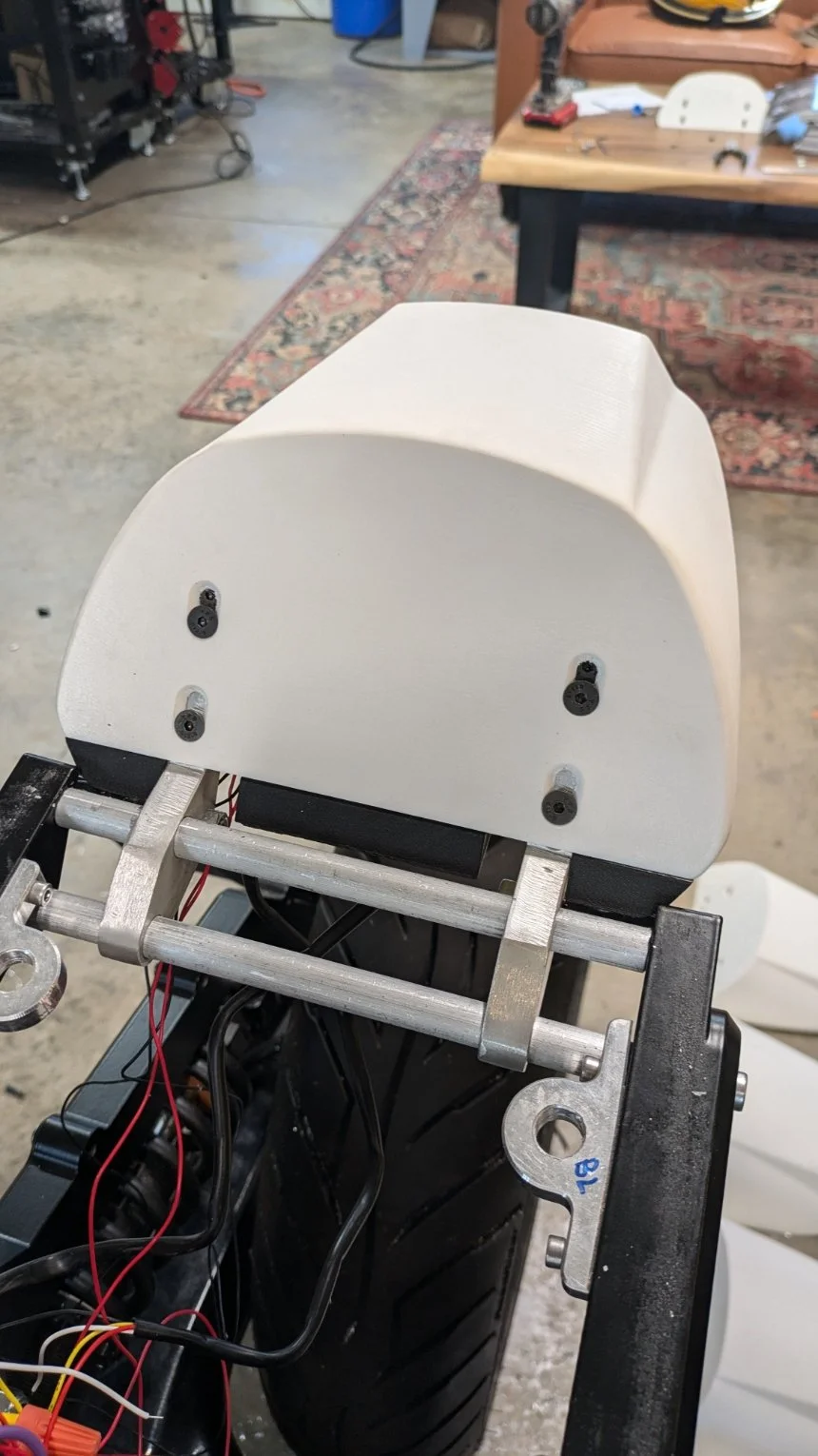

Full tail kit as seen on the concept eK100. Designed to match the lines and contours of funky K Bike tank shapes. Built in height and angle adjustment screws will ensure you nail your exact look.

eK100 Tail Kit Contains:

Main Tail - Made from solid ABS, primed gray ready for paint

Tail Base - Made from Carbon infused ASA, primed black (can be installed as-is) ready for paint

LED Strip Lights - One short (top) and one long (bottom) LED strip light

Dual Intensity Converter - Converts the the strip lights into separate brake and running signals

Retrorides Mount - Made from machined and welded 6061 Aluminum left unfinished.

Mounting Hardware - Hardware for mounting and alignment

Optional:

3 in 1 LED Lights - You can use all three functions: running, brake and turn signal; braking and turn signal, or just the turn signal only; you’re choice. Provides a great addition to your visibility when braking. You can add your own turn signals/lighting in the tapped M8 holes on the aluminum brackets if you choose the option without.

Not included: Retrosides subframe components or seat

Please note:

This is a 3D printed product, you will notice evidence of such on non visible surfaces. All visible surfaces will be sanded to eliminate layer lines and primed. The purchase of this kit assumes acknowledgement and cannot be returned due to this.

This kit is designed to mount to the Retrorides Subframe. The stock mounting tube length is 7in/177.8mm - you can enter a custom length when you add-to-cart if you need something different. You are responsible for providing this measurement, if not you will receive the stock length. The purchase of this kit assumes acknowledgement and cannot be returned due to this. The angle of the tail where it meets the back of the seat is DIFFERENT than the Retrorides Tail Design, you will have to adjust/bend your seat plate to get the right angle if you already have a seat - this was an aesthetic choice to match design lines. Reach out via the contact page for alternative options to adapt this kit to other setups.

Wiring Diagram

Electric motorcycle NOT required, this is a lighting kit for any normal 12 volt system

Fully machined aluminum versions will be available in the near future, if interested please submit a request via the contact page, expect to be in the 500 - 700 USD range.

Material:
3 in 1 Lights:
Quantity:
Add To Cart
